Production Process

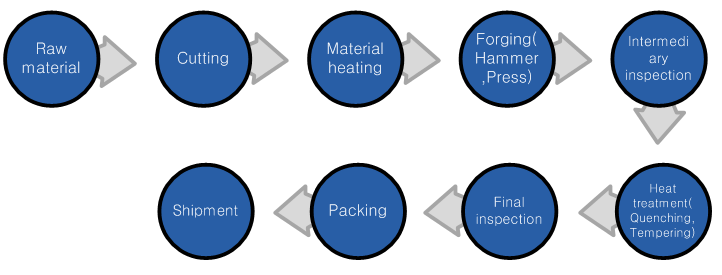

Production Process Chart for Forged Products

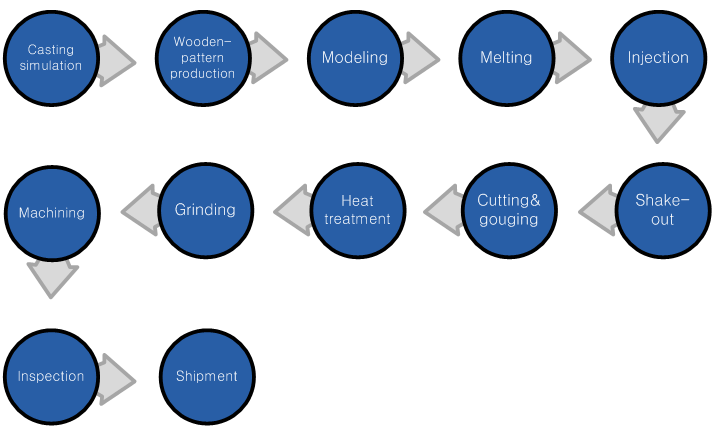

Production Process Chart for Casting Products
| Description | Specification | UNIT |
|---|---|---|
| Air drop hammer |
1 ton 1.5 ton 2 ton 4 ton |
2 1 4 4 |
| Cutting M/C |
350ton 1000kg |
1 2 |
| Plasma Cutting M/C | 150T | 3 |
| Crank press | 300 ton | 1 |
| Forging press |
1,350 ton 400 ton 250 ton |
1 1 1 |
| Knuckle press | 630 ton | 1 |
| Automatic Production line for ball screw rolling system |
100 ton 60 ton 40 ton 25 Ton |
1 1 1 1 |
| Electric heating Furnace |
150 ton 80 ton 65 ton 35 ton |
1 1 1 1 |
| Heat treatment |
60 ton 40 ton |
1 1 |
| high frequency induction furnace |
0.5 Ton 0.25 Ton |
5 1 |
| Description | Specification | UNIT |
|---|---|---|
| Metal analyzer |
Wet type Dry type X-ray |
1 1 1 |
| Universal Testing Machine | Hardness, Compression | 1 |
| C/S Determinator | Carbon/Sulfur | 1 |
| Hardness tester | Rock well | 4 |
| sample Milling machine for analysis | Spectrum analysis | 1 |
| Electronic microscope (for structural analysis) | Micrometer | 1 |
| Wire Cutting M/C | 1050ｘ820ｘ310 | 1 |
| Impact test M/C | 1 ton | 1 |
